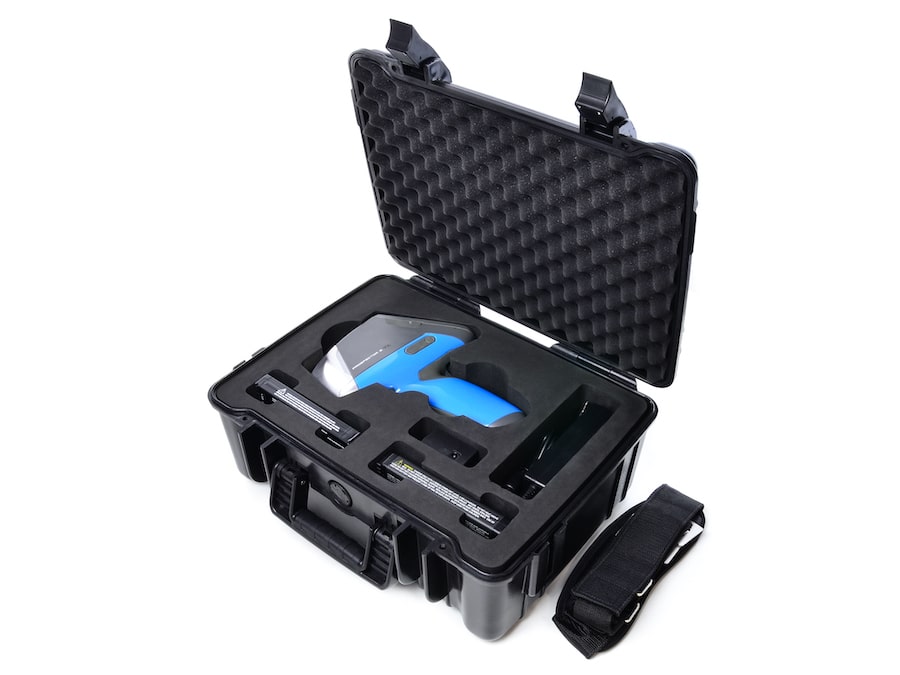

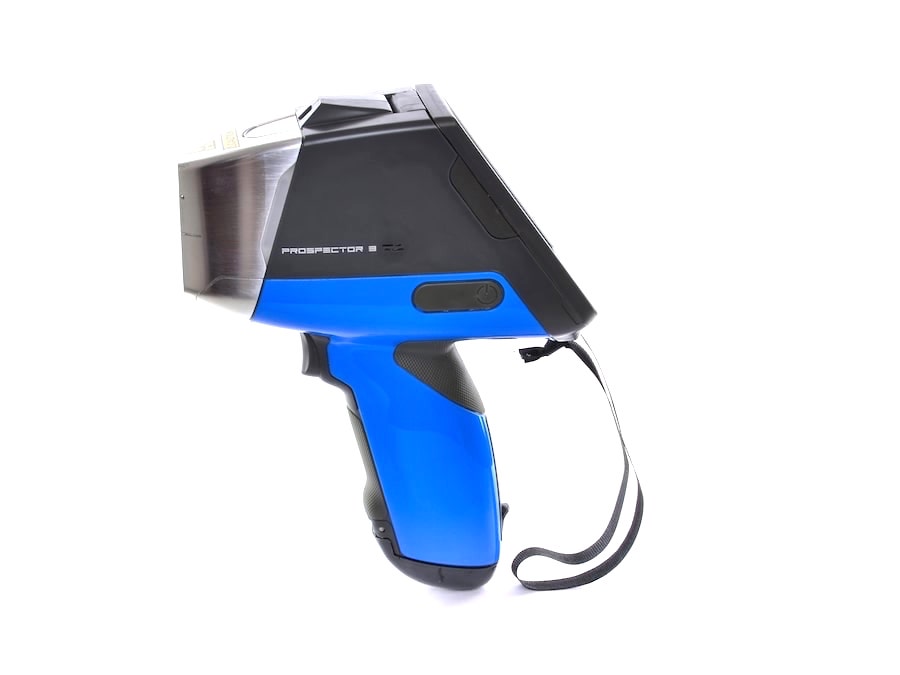

Elvatech ProSpector 3 handheld XRF Analyzer

ProSpector 3 is the next-generation handheld X-ray fluorescence analyzer. It offers a new level of analysis accuracy, speed, and detection limits. ProSpector 3 is the smallest and lightest handheld XRF on the market with an intuitive and user-friendly software interface. Unique processing algorithms allow analyzing various types of materials including alloys, ores, soils, plastics, automotive catalysts etc.

Description
Reviews (0)

Description

Elvatech ProSpector 3 handheld XRF Analyzer

World’s fastest XRF analyzer (throughput above 500 000 cps – more than twice as fast as any other handheld XRF) – highest accuracy within the shortest measurement time, excellent precision
World’s smallest (236 х 193 х 68 mm), and lightest (1.05 kg with a battery) handheld analyzer – easy to operate
Dustproof and waterproof instrument body, with IP-67 ingress protection rating – ProSpector 3 can be operated even under water!
Automatic collimator changer for small spot analysis of jewelry, welds etc.
Folding display – for easy operation in the lab stand without connecting to a PC
Highest mobility – up to 16 hours of autonomous operation on a single battery charge, hot battery swap
Superior calibration stability, compensation of influence of ambient temperature and pressure variations – no need to spend time for calibration
Two CCD cameras for macro- and micro- view
Scanning barcodes (commodity EAN and UPC codes, QR codes, book ISBN codes, Databar, Codabar, etc.) that contain information about the sample: name, number, code, etc.
Full compatibility with ElvaX^TM PC software
Radiation safety: proximity sensor and low count rate detection
Great choice of accessories for comfortable work.

Digital X-Ray Source digiX-50 Anode: Rh, W Voltage: 50 kV Current: 200 uАmp Power: 5 W 8 positions filter changer 2 position collimator changer	X-Ray Detector Type: Fast SDD Area: 25 mm² (option 70 mm²) Energy resolution: <140 eV @ 5.9 keV Count rate: 500,000 cps
Electronics DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate MCA: 4096 channels Display: 4.3″ Connectivity: USB, Bluetooth, Wi-Fi, GPS 2 high-resolution video cameras	General Dimensions: 236 х 193 х 68 mm Weight: 0.82 kg, 1.05 with battery kg Protection: IP67
Software Operating system: Windows EC7 Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations
