Description

Faro 3D Scanner S150 Laser

Faro 3D Scanner S150 Laser what is a Delivering realistic and true-to-detail scan results with a range of 150m per scan. Featuring a HDR 8MP Camera, +/- 1mm range error. Use standalone or mount to manipulators / UAV / UGV.

Kit contents

Faro Focus S 150 scanner
Battery with charger
Laptop with case inc Faro Scene software
Rugged Case
Helical kit for UAV use
32GB SD card with card reader

Faro Focus S 150 Laser Scanner Technical Spesification:

• Range: 0.6 – 150m
• High Dynamic Range (HDR) Photo Recording 2x/3x/5x
• Measurement Speed: up to 976,000 points/second
• Ranging Error: ± 1mm
• Sealed Design – Ingress Protection (IP) Rating Class 54
• On-site Compensation
• Accessory Bay
• Angular Accuracy: 19 arc sec for vertical/horizontal angles
• Integrated Colour Camera: Up to 165 mio. pixel
• Laser Class: Laser class 1
• Weight: 4.2kg
• Multi-Sensor: GPS, Compass, Height Sensor, Dual Axis Compensator
• Size: 230 x 183 x 103mm

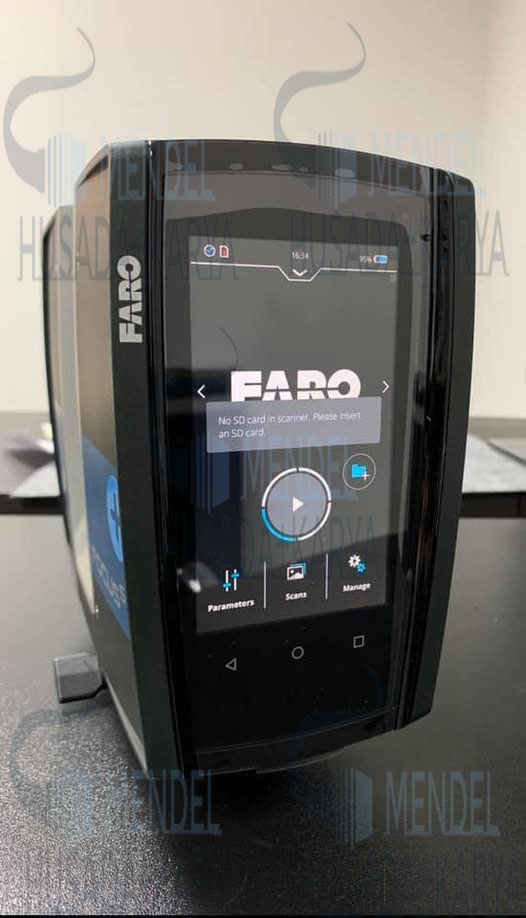

• Scanner Control: via Touch Screen Display and WLAN

Faro Focus S 150 Laser Scanner package includes:

• Faro Focus S 150 Laser Scanner: with HDR Photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, Accessory Bay, IP Rating 54, On-site Compensation Functionality
• Battery Power Block, Battery Power Dock, 90W Power Supply
• Optic Cleaning Fluid, Optic Cleaning Tissues
• 32GB SD Card, SD Card Reader, SD Card Cover
• Allen Wrench

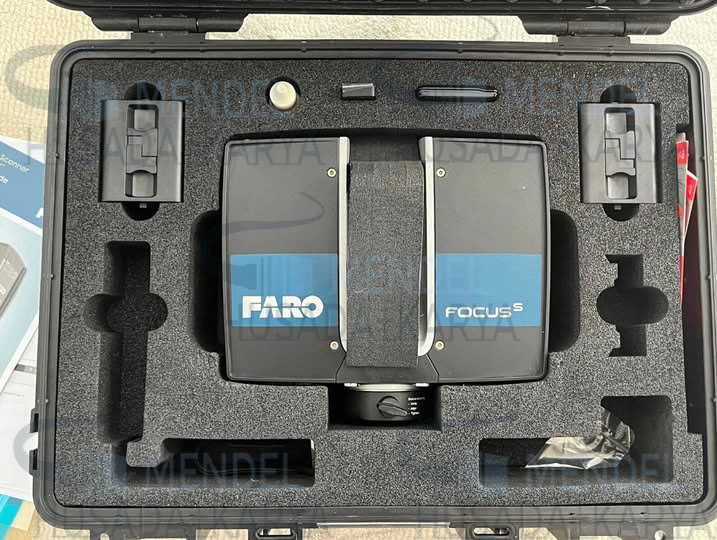

• Rugged Transport Case
• Calibration Certificate
• Quick Start Guide
