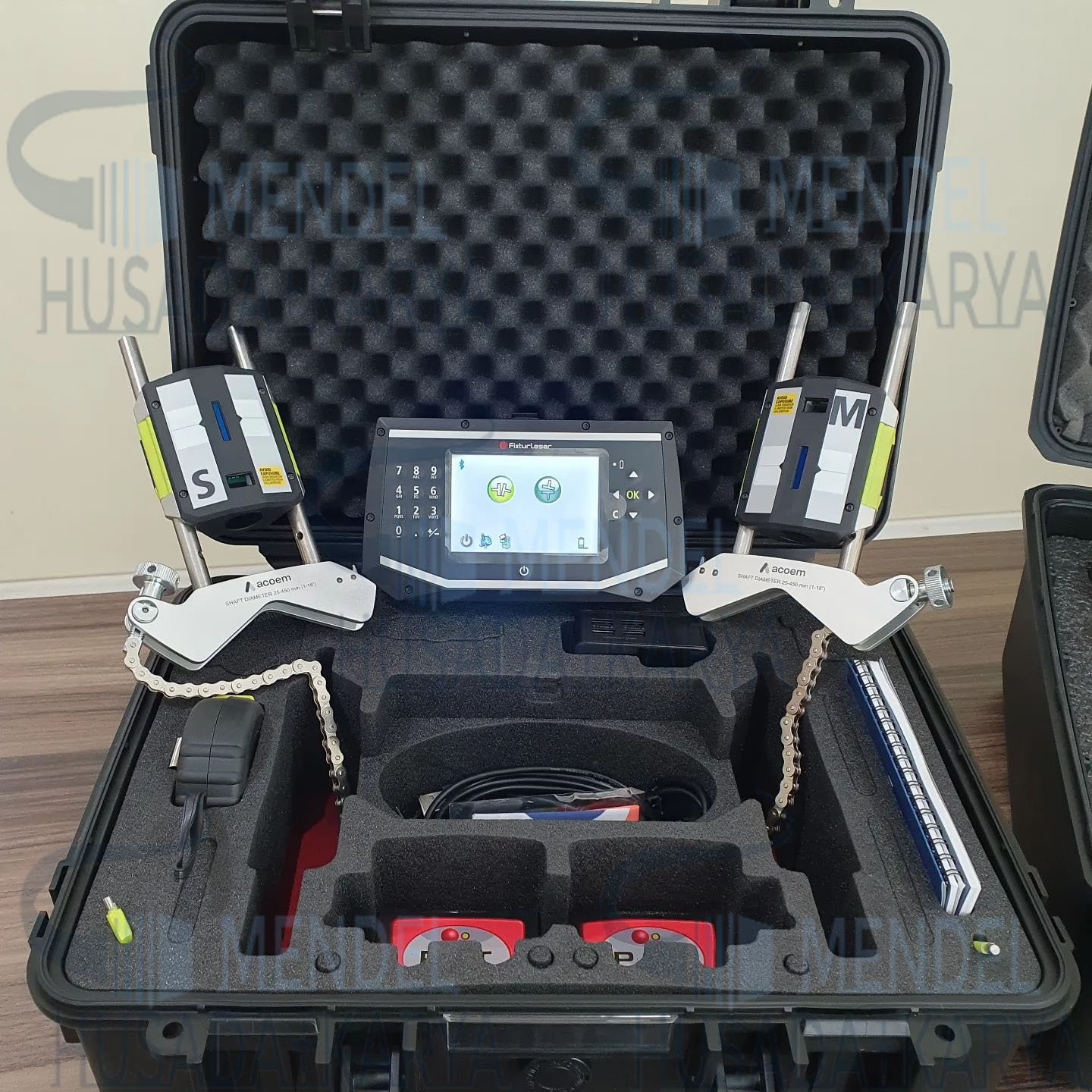

FixturLaser ECO Laser Shaft Alignment System

Fixturlaser ECO is an entry-level system for shaft alignment.
Wireless sensor units, 4” colour display, rechargeable batteries and
an IP65 design that withstands harsh
environments. Fixturlaser ECO is a
high-quality system that is very easy
to use.

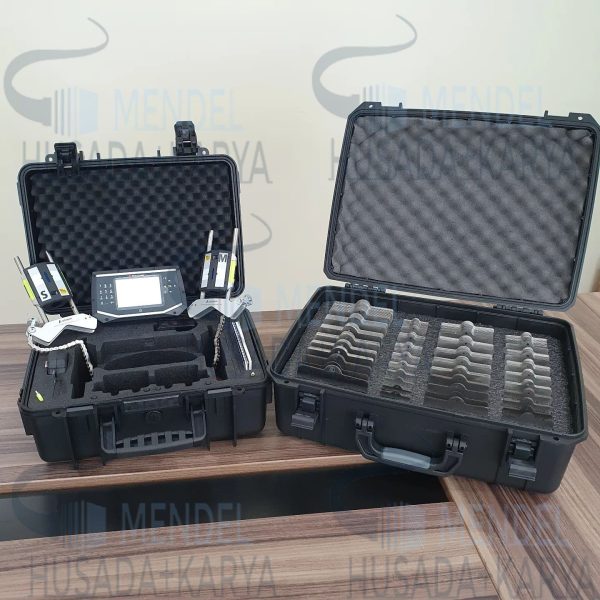

FIXTURLASER EVO – COMPLETE SYSTEM
Weight (incl. all standard parts): 4,8 kg (10,6 lbs)

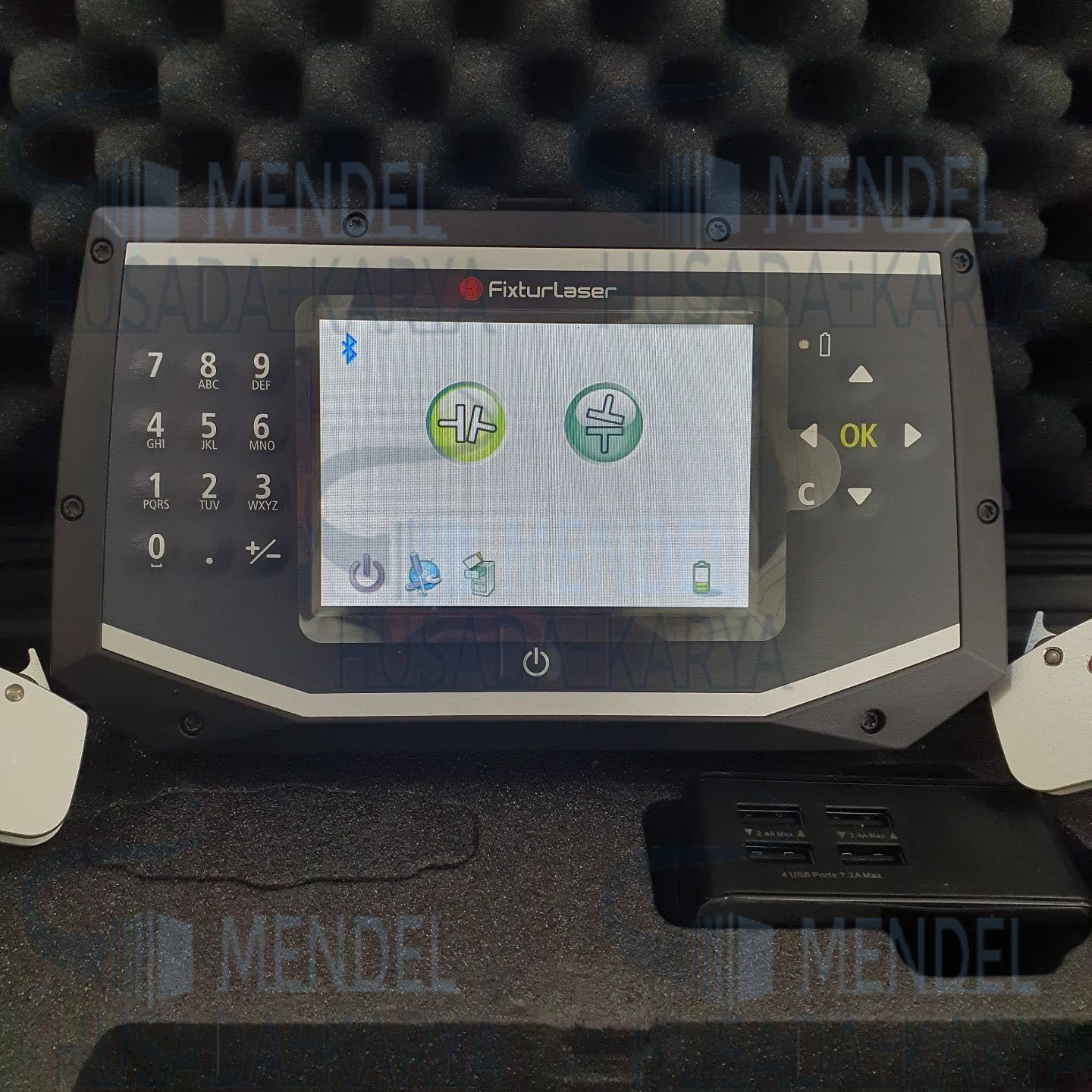

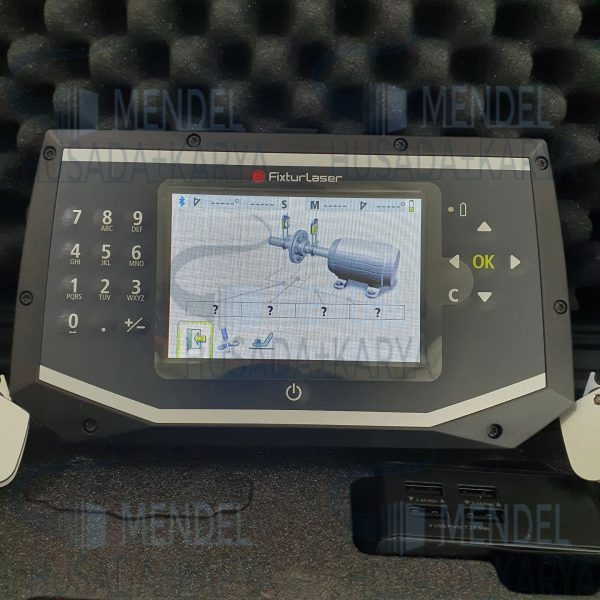

DISPLAY UNIT
Weight: 0.36 kg (12,8 oz)
Dimensions: 181 mm x 106 mm x 34 mm
(7,1 in x 4,2 in x 1,3 in)
Environmental protection: IP 65
Display size: 4” (102mm) diagonal
(84 x 56 mm, 3,3 x 2,2 in)
Operating time: 8 hours continuous use

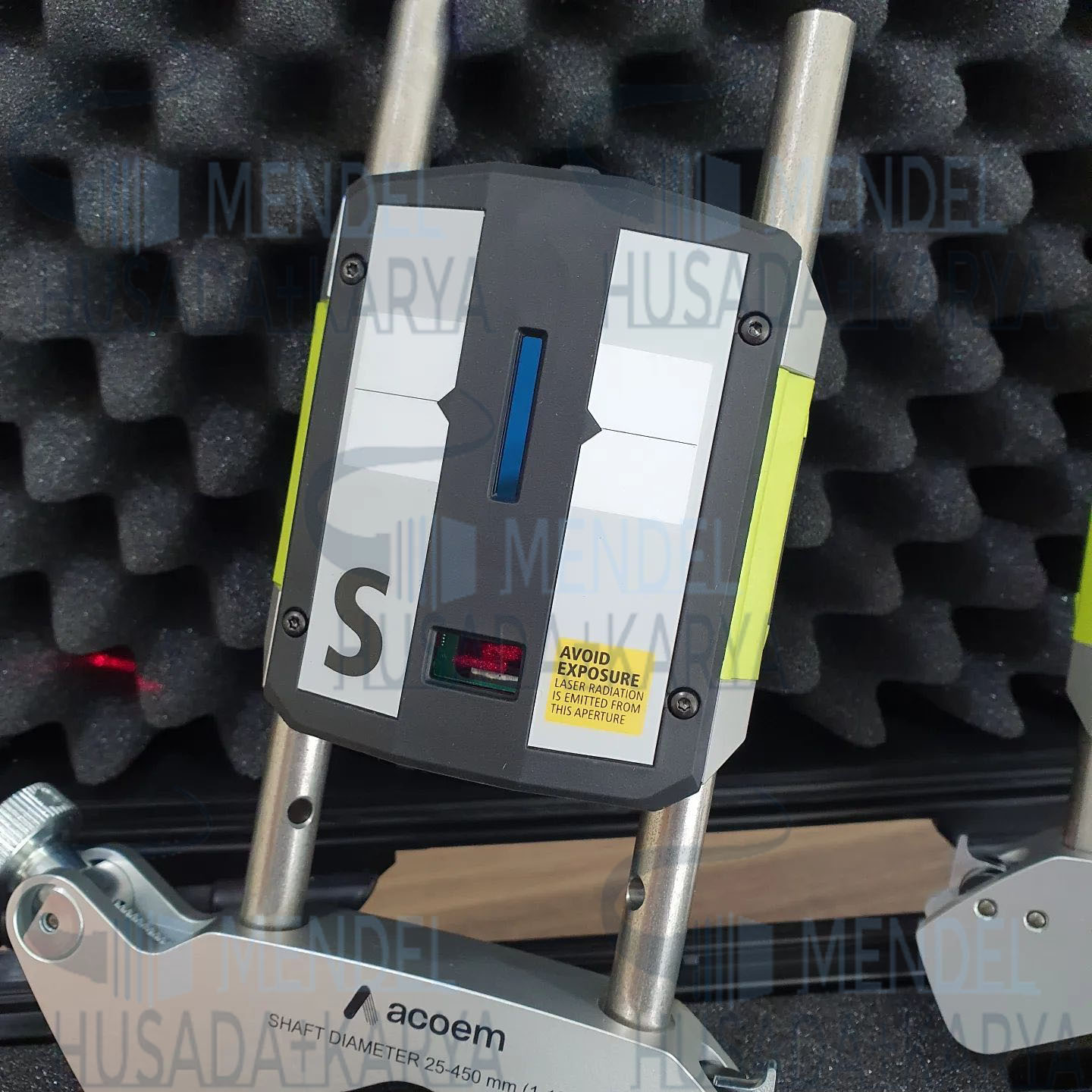

TD UNITS
Weight: M6 200 g (7,5 oz) S6 188 g (6,6 oz)
Environmental Protection: IP 65
Measurement Distance: Up to 3 m
Detector: Digital line sensor
Detector Length: 20 mm (0.8 in )
Detector Resolution: 1% ± 1 digit
Measurement Accuracy: 1% ± 1 digit
SHAFT BRACKETS
Shaft diameter: Ø 25 – 175 mm (1in – 6.9in)
With extension chain
Ø 25 – 450 mm (1in – 18in)
Rods: 4 pcs 150 mm (5,9 in)

• Integrated Bluetooth
•Lifetime Warranty
•Pre-mounted sensors
•Colour screen, 4″
•Vertizontal Moves
•Screen Flip
• 8 hours battery time, continous use
•CCD sensors technology
•Live values during adjustment
• IP65 classified
•Slim sensor units
