Mentor Visual iQ VideoProbe

Original price was: $12,480.00.Current price is: $6,240.00.

Probes come with a tip head guard to protect the threads, which is highly recommended for use without an optical tip. If you use the probe without the head guard or an optical tip you will damage the threads, which is costly to repair. Optical tips are sold separately.

Category: NDT Inspection Tag: Mentor

Description
Reviews (0)

Description

Mentor Visual iQ VideoProbe

Mentor Visual iQ Analyzer

The Analyze model uses the same probes and interface as the Touch and takes the upgrades even further. In addition to the 32GB of internal memory and software you’ll also automatically get the stereo, 3D phase, and 3D stereo measurement upgrades as well as the “Probability of Detection” upgrade, which includes:

– High-Dynamic Range (HDR)
– Adaptive Noise Reduction
– Distortion Correction
– Preset Image Transformations

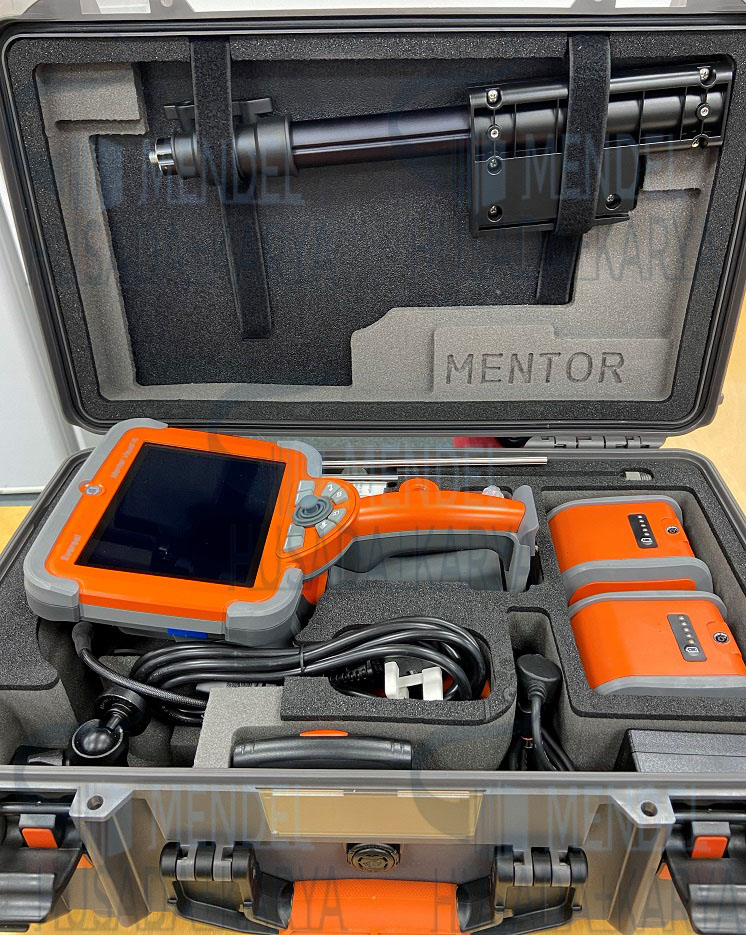

All models of the Visual iQ come with a carrying case. You choose from the rolling carry-on version or the larger work station model that includes a pole mount handset holder and accessory storage pouch.

Specifications:

Operating temperature
Tip : -25ºC to 100ºC (-13ºF to 212ºF). Reduced articulation below 0ºC (32ºF)
System : -20º to 46ºC (-4ºF to 115ºF). LCD may require warm-up period below 0ºC (32ºF)
Storage temperature : -25º to 60ºC (-13ºF to 140ºF)
Relative humidity : 95% max, non-condensing
Waterproof : Insertion tube and tip to 14.7 psi (1 bar, 10.2 m of H2O, 33.5 ft of H2O)

Camera
Diameter probe : 4.0 mm (0.16”), 6.1 mm (0.24”), 6.2mm (0.24”), 8.4 mm (0.33”)
Image sensor : 1/6” Color Super HAD™ CCD camera (6.1, 8.4mm), 1/10” Color Super HAD™ CCD camera (3.9mm, 4.0mm, 6.2mm)
Pixel count : SD 3.9, 4.0, 6.1, 6.2, 8.4 mm – 440k pixels
HD 6.1mm – 1200k pixels
Housing : Titanium
