Specifications:

Input

Analog, 2x : Voltage (AC/DC, ±30 V max.)
Current (AC/DC, ±30 mA max.)
ICP-type accelerometer (2 mA, 24 V max.)
Current Linedrive (CLD) accelerometer (10 V, 10 mA max.)
Frequency range : DC … 51.2 kHz (Acceleration from 0.5 Hz)
Dynamic range : 96 dB (measurement) / 136 dB (total)
Sampling frequency : up to 131 kHz per channel
Analog, 1x : Thermocouple (type K)
Digital (1+1 Pulse/Tacho), 1x : RPM, Trigger, Keyphaser with pulse and AC signals: 0 V … +26 V or -26 V … 0 V

Output

Stroboscope control : TTL output
Signal-Out : Connection for headphones to listen to the analog input signal; signal processing (oscilloscope)

Meas. range / Accuracy

Vibration acceleration : depends on the transducer connected
Shock pulse : -10 …80 dBsv / ± 3dBsv
RPM : 10 … 200 000 min-1 / ±0.1‰ or ± 1 min-1 (the lower accuracy is applicable)
Temperature type K : -50 … +1000°C / 1% or ±1°C (the lower accuracy is applicable)

Hardware

Display : LCD, backlit, 1/2 VGA (480 x 320 pixel), 16 grey scales
Battery type : Li Ion rechargeable battery pack (7.2V / 4.8Ah – 34 Wh)
Charging time : < 5 hours in the device or external with optional charging station
Charging temperature : 0°C … +50°C
Memory : Internal: 64 MB RAM;
Compact Flash: 1 GB or 4 GB
Dimensions : 250 x 220 x 37 mm (LxWxH)
Weight approx. : 2.3 kg
IP rating : IP65, dust and splash-proofed
Temperature range : -10°C … +50°C (Operation)
-20°C … +60°C (Storage)
Intrinsic safety : II 2 G Ex ib IIC T4

Package Includes:

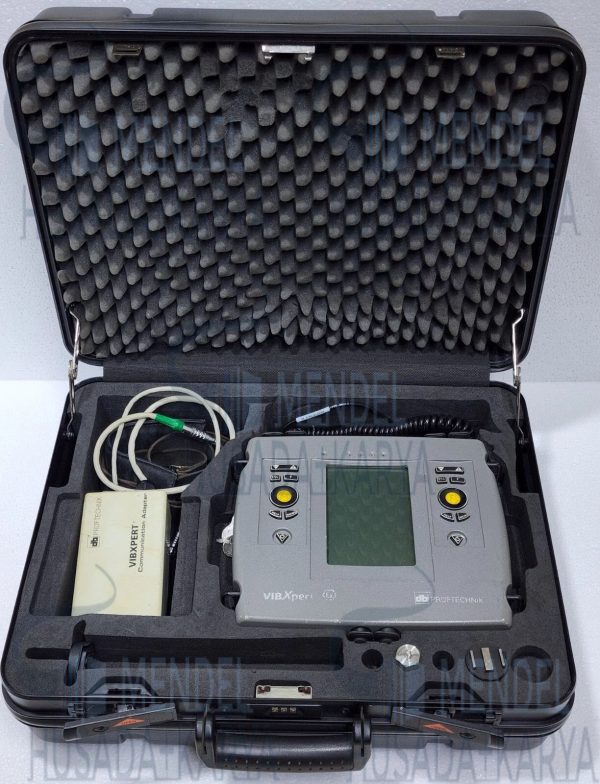

– (1) VIB 5.300 EX VIBXPERT EX instrument
– (1) VIB 5.322 VIBXPERT EX charger
– (1) VIB 5.329-X VIBXPERT EX case
– (1) VIB 5.330-UNV Universal communication adapter
– (2) VIB 5.338 USB cable for VIBXPERT EX
– (1) VIB 5.354-LD VIBXPERT EX leather carrying strap
– (1) VIB 5.380-L 1-channel standard firmware certificate
– (1) VIB 5.382-L 2-channel standard firmware certificate
– (2) VIB 5.436 Spiral cable for line-drive transducers
– (2) VIB 6.142 DEX Accelerometer for standard machines, intrinsically safe
– (2) VIB 3.420 Magnetic holder for curved mounting surfaces
– (1) VIB 9.805.G VIBXPERT manual
– (1) LIT 53.101.EN VIBXPERT EX short instructions
– (1) VIB 9.806.G VIBXPERT balancing manual
– (1) LIT 01.800 CD ROM, Condition Monitoring catalogs, brochures, magazines
– (1) VIB 8.981 CD ROM, OMNITREND for VIBXPERT, PC software
– (1) VIB 9.631.G OMNITREND getting started
– (1) VIB 8.115 OMNITREND web, single user certificate
– (1) VIB 8.981-P PC licence for VIBXPERT EX
– (1) 0 0594 0219 EC-type Examination Certificate – ATEX – VIBXPERT EX
– (1) 0 0594 0221 Technical data sheet, UNV communication adapter
