EXPERTISE AT YOUR SERVICE
GeoMax cares for your work and wants your GeoMax laser tools to stay operational for as long as you work. To ensure this, products are supported by highly skilled service centers around the world offering the following services for the life time of your product:
· Repair and maintenance of lasers and accessories
· Re-calibration
· Cleaning and general servicing of all product parts
· Functional testing and product safety

· Repair (parts and labor) or exchange of your laser
· Full functional and safety check
· Re-calibration after repair

The regular warranty period can be extended by 2 additional years for a fee.
The warranty does not cover damage caused by abuse or mishandling.

Features
Automatic Shut-Off N/A
Display N/A
Drop Damage Protection N/A
Bump Sensor (H.I./Out of Position Alert) N/A
Protection Class IP67 dustproof and water submersible
Tripod Adapter (Center Screw Thread) 5/8 x 11
Removable Laser Cage (for exact beam spotting) N/A
Detecting Indicator N/A
Dual Handles N/A
Built-in Bubble Vial N/A
Adjustable Rotating Speed 300, 600 RPM
One-Touch Commands N/A
Wall Mount Bracket N/A
Plumb Point N/A

General
Maximum Power Output N/A
Weight 7.5 lbs (3.4 kg)
Dimensions N/A
Warranty 5-year
Remote Control Operating Distance N/A

Extra Technology

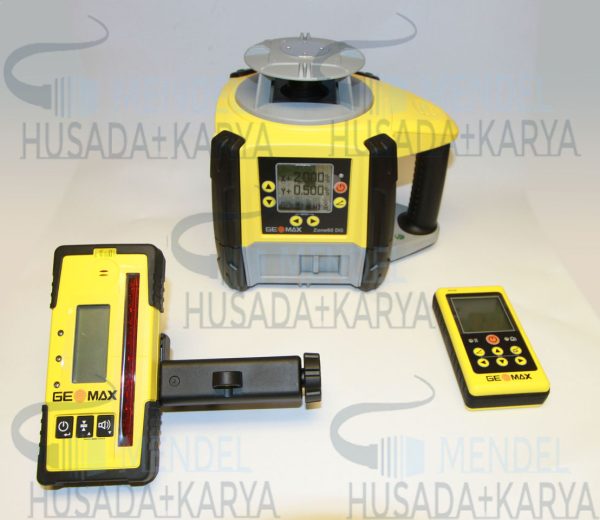

Remote Control ZRC60 Remote Control

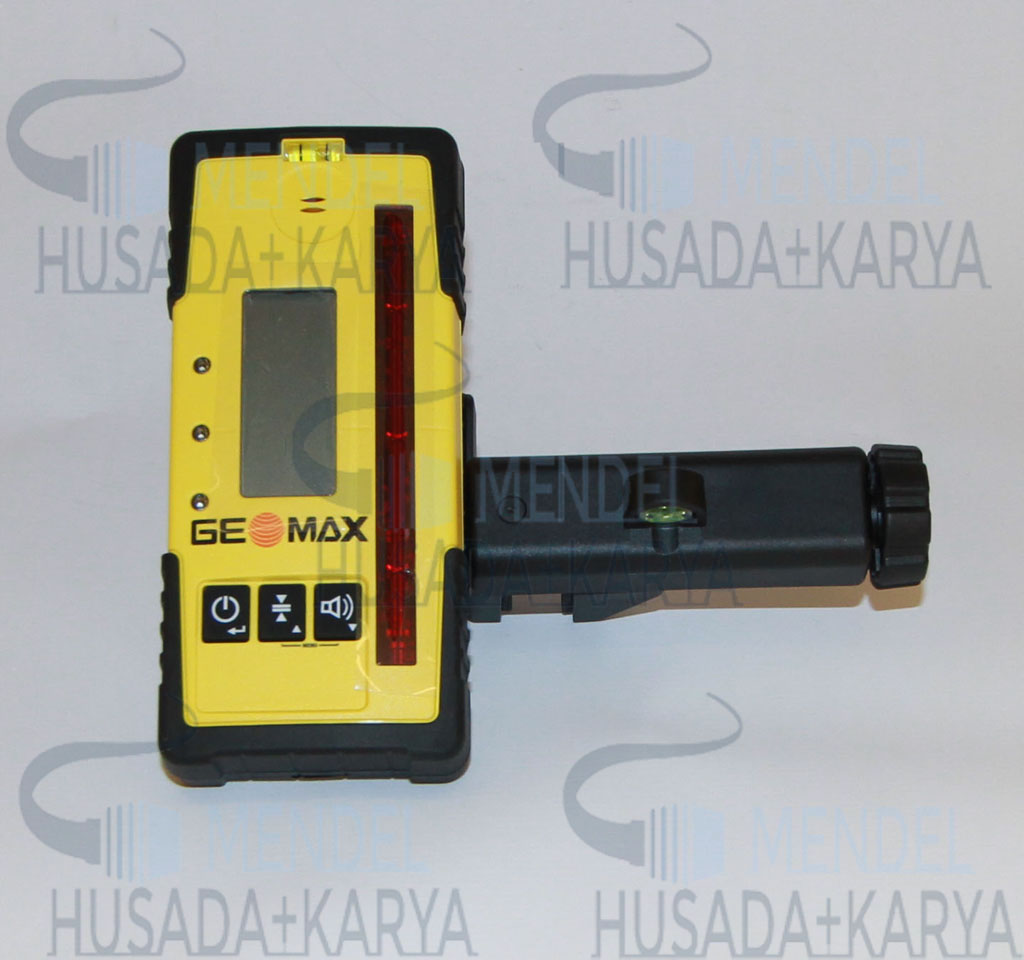

Detector/Receiver ZRB35 Basic, ZRP105 Pro or ZRD105 Digital Receiver
Smart Scan® N/A
Smart Slope® N/A

Accuracy
Horizontal ±1/16 inch at 100 feet (1.5 mm at 30 m)
Vertical ±1/16 inch at 100 feet (1.5 mm at 30 m)

Temperature
Storage -22 to 140° F (-30 to 60°C)
Operating -22 to 122° F (-20 to 50°C)

Charger
Input N/A
Output N/A
Charging Time N/A

Functions
Slope Match N/A
Grade Operation Fully-automatic
Automatic Leveling Yes
Beam Operating Modes N/A
Scanning Modes N/A

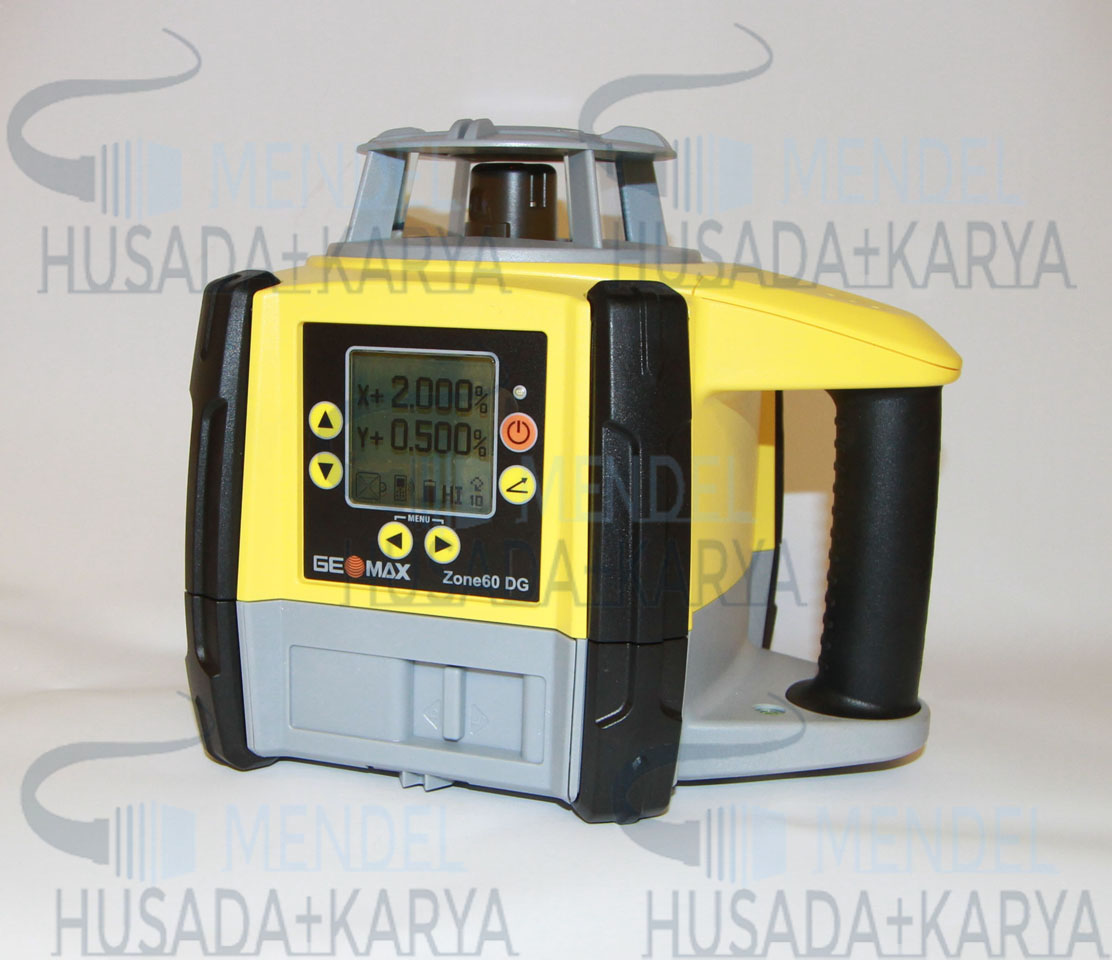

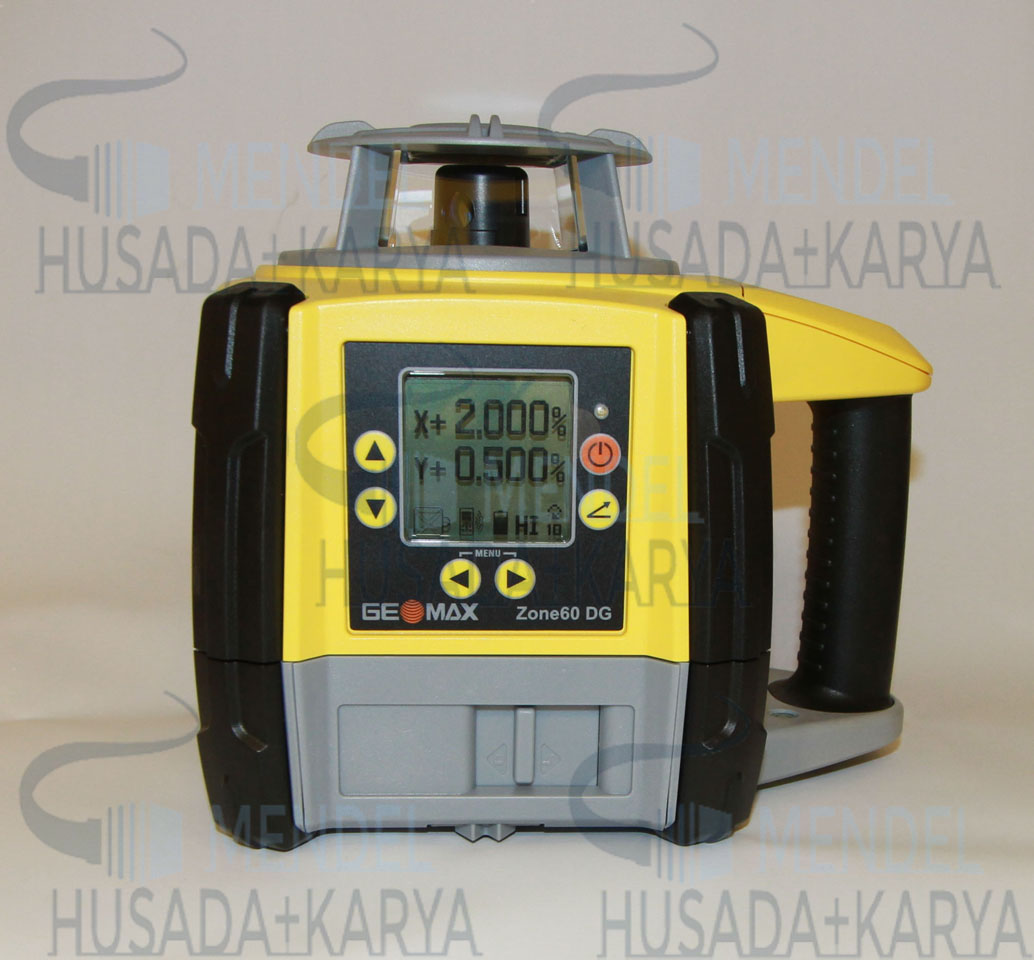

Geomax Zone60 DG Fully-Automatic Dual Grade Laser

Applications
Checking/Setting Elevations Yes
Transferring Points from Floor to Ceiling N/A
Machine Control of Excavators, Graders, Dozers or Similar Equipment N/A
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) Yes
Short-Range Leveling for Decks, Patios & Swimming Pools Yes
Installation/Leveling Interior Walls Yes
Installation/Leveling Ceiling Grids N/A
Squaring and Layout of Partitions, Walls & Tile Floors Yes
Concrete Forms, Footings and Foundations Yes
Plumb Reference N/A
Checking Elevations of Sub-Base and Sub-Grade N/A
Short-Run Vertical Alignment Yes
Checking Building Square & Area N/A
Estimating Cut & Fill N/A
Matching Existing Slope & Grade Yes
Locating Finished Floor Levels N/A

Grade
Type Dual
Percentage ±15%
Accuracy N/A
