Name: Sale - Geomax Zone80 DG Fully-Automatic Dual Grade Laser
Brand: Geomax
SKU: 1138
Availability: InStock

Sale!

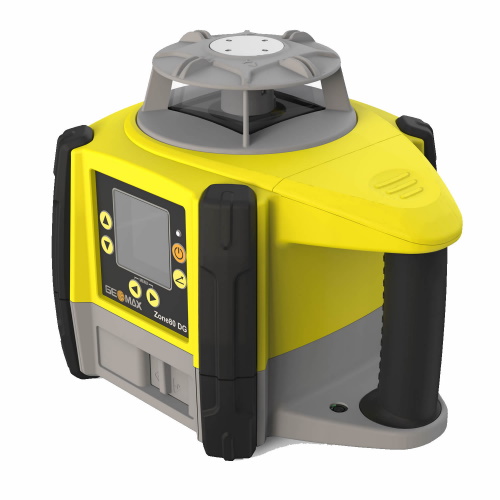

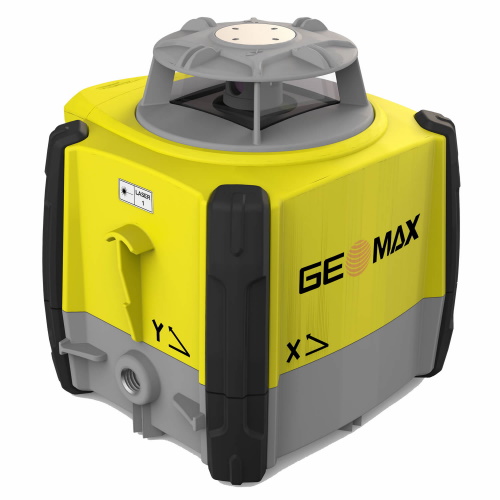

Sale – Geomax Zone80 DG Fully-Automatic Dual Grade Laser

Original price was: $2,190.00.Current price is: $1,090.00.

After turning on:
• The LCD display turns on and displays the current status of the
Zone80 DG.
• If set up within the +/-6° self-levelling range (horizontal or vertical),
the Zone80 DG automatically levels to create an accurate horizontal
plane of laser light.
• Once levelled, the head starts rotating and the Zone80 DG is ready for
use.
• The H.I.Alert system becomes active 30 seconds after completing the
self-levelling. The H.I.Alert system protects the Zone80 DG against
changes in elevation caused by any movement or settling of the tripod.
• The self-levelling system and the H.I.Alert function continue to monitor the position of the laser beam to ensure consistent and accurate
work.

Category: Surveying Equipment Tag: Geomax Brand: Geomax

Description

Sale – Geomax Zone80 DG Fully-Automatic Dual Grade Laser

Available Options:

6015114: without Remote and Receiver
6014931: with Remote and Pro Receiver
6014932: with Remote and Digital Receiver
6014933: with Remote and Beam-Catching Digital Receiver

Features:

The Zone80 DG is capable of operating at a speed of 20 rotations per second (rps)
The Zone80 DG is a perfect fit for machine guidance solutions.
With a laser beam that is stable over large distances, the Zone80 DG is especially suited for land leveling and agriculture applications.
For optimal land use, the Zone80 DG not only gives you a reference for horizontal planes but also for slopes up to 15%.

Specifications:

Zone80 DG
- Operating Range (Diameter): 1100 m / 3000 ft
- Self-leveling Accuracy: ± 1.5 mm at 30 m (±1/16″ at 100 ft)
- Self-leveling Range: ± 5°
- Grade Range: Up to 15%
- Rotation Speed: 300, 600, 1200 rpm
- Scanning Modes: –
- Laser Diode Type / Class: 635 nm (visible) / Class 1
- Batteries Type: Li-Ion
- Battery Life: > 50 h
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -40°C to 70°C
- Protection: IP67
