Sale – Proceq GS8000 Subsurface Ground Penetrating Radar
Original price was: $18,440.00.$9,220.00Current price is: $9,220.00.
An encrypted Wi-Fi connection to the user’s Apple iPad® provides the ideal platform to view, connect, and distribute results. The included GS8000 Pro software leverages the iPad’s powerful post-processing capacity, high visual resolution, and reporting to collaboration features. Instantly upload scan data, graphics, and report information to the cloud from any location for immediate sharing with stakeholders everywhere. The subscription-based software provides free updates and releases.
Description
Sale – Proceq GS8000 Subsurface Ground Penetrating Radar

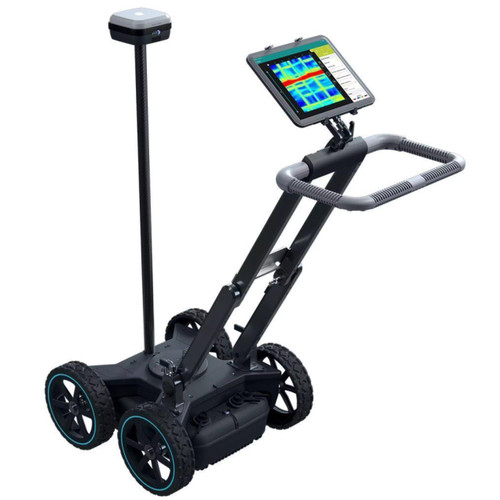

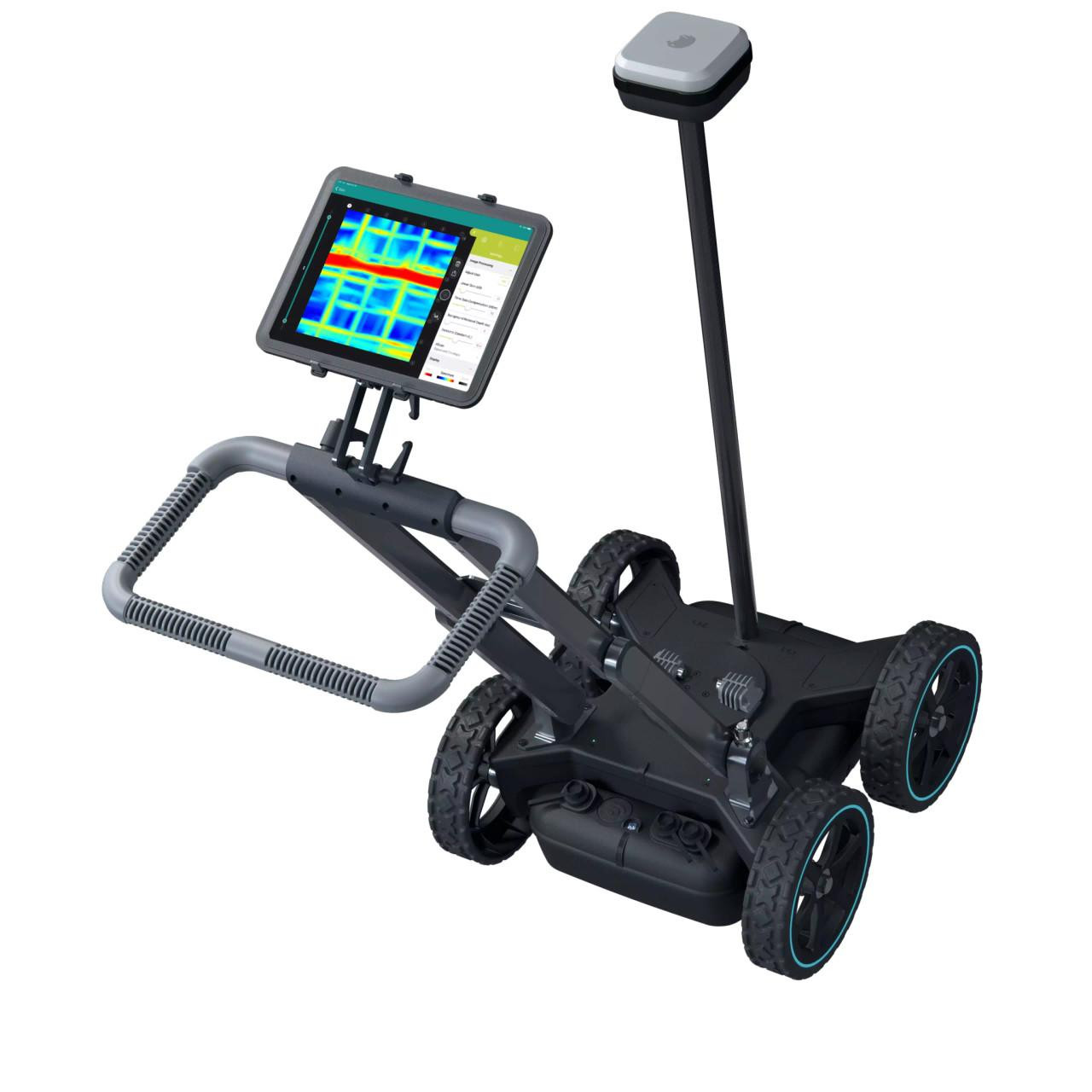

Proceq Subsurface GPR GS8000
Proceq GS8000 is an all-in-one Sub-surface GPR for detecting objects and mapping the underground world using SFCW ground penetrating radar technology.
Due to effective modulated frequency range of 40 – 3440 MHz ² and ultra-wide band) & deeper depth penetration up to 10 meters, The GS8000 ground penetrating radar is an ideal solution for Utility strike prevention, Subsurface utility engineering (SUE), Underground 3D Reality Capture, Asset inspection & Geophysical investigations / Archaeology / Forensics / Precision Agriculture.
The GS8000 GPR allows underground utility scanning & provides 3D image of the surface detecting the object underground with minimum detectable object size of 1cm which makes it a preferred GPR for utility scanning.
The utility scanning GPR offers real time 2D & 3D data visualization of the scanned subsurface for an optimal interpretation on site
The Proceq GS8000 GPR offers cross polarization of data which allows to see both metallic target & non-metallic targets cleaner as per the requirement.
Features:
- Push-pull cart with variable ground clearance is well-suited for multiple terrains
- Reading depth up to 33ft (10m); approximately 12ft (3.7m) in average soil conditions
- Real-time scanning, at speeds of up to 22mph (35kmh)
- Performs scans up to 9.3mi (15km) long or a 260x260ft (80x80m) grid
- Onboard multiband GNSS antenna provides accurate positioning and receives signals from multiple system satellites
- Apple iPad® display and data processing uploads to the cloud for instant collaboration and allows upgrades without replacing the scanning unit
- Covers frequencies from 0.2 to 3.4GHz using SFCW technology
- 2D, 3D, and Augmented Reality (AR) imagery
- Encrypted Wi-Fi connection
Included Items:
- GS8000 Subsurface GPR
- One-year subscription to GS8000 Pro software
- Wi-Fi module
- GNSS geolocation antenna
- Collapsible push-pull cart
- Fiber carbon pole
- Power supply
- AR marker
- USB cables and basic tools
